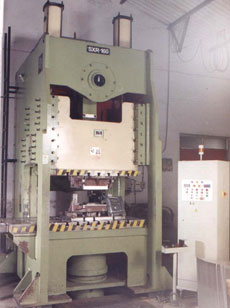

Specification of 160 Ton Ring Frame Press "Make See"

01	CAPACITY	160 TON
02	CAPACITY ABOVEE BDC	9 MM
03	STROKE LENGTH	225 MM
04	NO. OF STROKE PER MINUTE (FIXES)	40
05	SHUT HEIGTH OVER BOLSTER (SDAU)	450 MM
06	SLIDE ADJUSTMENT	125 MM
07	BOLSTER AREA LR x FB (WITH 300 MM EXTENDED PLATE ON LEFT HAND SIDE OF THE PRES FOR TOOL LOADING)	1500 x 1000 MM
08	BOLSTER THICKNESS	120 MM
09	CLAMPING SLOT SIZE IN BOLSTER / RAM	28 M
10	HEIGHT OF THE BOLSTER PLATE TOP FROM THE FLOOR LEVEL	900 MM
11	TOTAL WEIGTH OF THE PRESS APPROX	20 TON
12	MAIN MOTOR POWER	20 HP
13	DIE CUSHION CAPACITY	27 TON
14	DIE CUSHION STROKE	100 MM

Specification of 63 Ton C-Frame Press

01	CAPACITY	63 TON
02	BOLSTER THICKNESS	85/90 MM
03	STROKE THICKNESS	8-100 MM
04	STROKE ADJUSTABLE	60
05	SLIDE ADJUSTMENT (MANUAL)	70 MM
06	DEPTH OF THROAT	300 MM
07	SLIDE FACE	800 x 500 M
08	SHUT HIEGHT OVER BOLSTER	350 MM
09	SHANK HOLE	DIA 50 x 85
10	SIZE OF BOLSTER	800 x 500 MM

Specification of 40 Ton C-Frame Press

01	CAPACITY	40 TON
02	BOLSTER THICKNESS	75/80 MM
03	STROKE ADJUSTABLE	8-75
04	STROKE PER MINUTE	60
05	SLIDE ADJUSTMENT (MANUAL)	70 MM
06	DEPTH OF THROAT	250 MM
07	SLIDE FACE	500 x 350
08	SHUT HEIGHT OVER BOLSTER (SDAU)	350 MM
09	SHANK HOLE	DIA 50 X 85
10	SIZE OF BOLSTER	500 x  350

Specification of 20 Ton C-Frame Press

01	CAPACITY	20 TON
02	BOLSTER THICKNESS	65 M
03	STROKE ADJUSTABLE	8-75
04	STROKE PER MINUTE	60
05	SLIDE ADJUSTMENT (MANUAL)	70 MM
06	DEPTH OF THROAT	230 MM
07	SLIDE FACE	240 x 160
08	SHUT HEIGHT OVER BOLSTER (SDAU)	320 MM
09	SHANK HOLE	DIA 40 X 75
10	SIZE OF BOLSTER	600 x  30
